Chase Doors
Chase Doors Top Seals
Top Seals work with Chase models that require a 2" top seal.
To Find Your Door Parts:
- Hover mouse anywhere within the blue squares on the door image.
- Click on the highlighted box to display the part numbers and links on the left-side box.
- Click on your part number in the left-side box to bring you to the page where you can order your part.

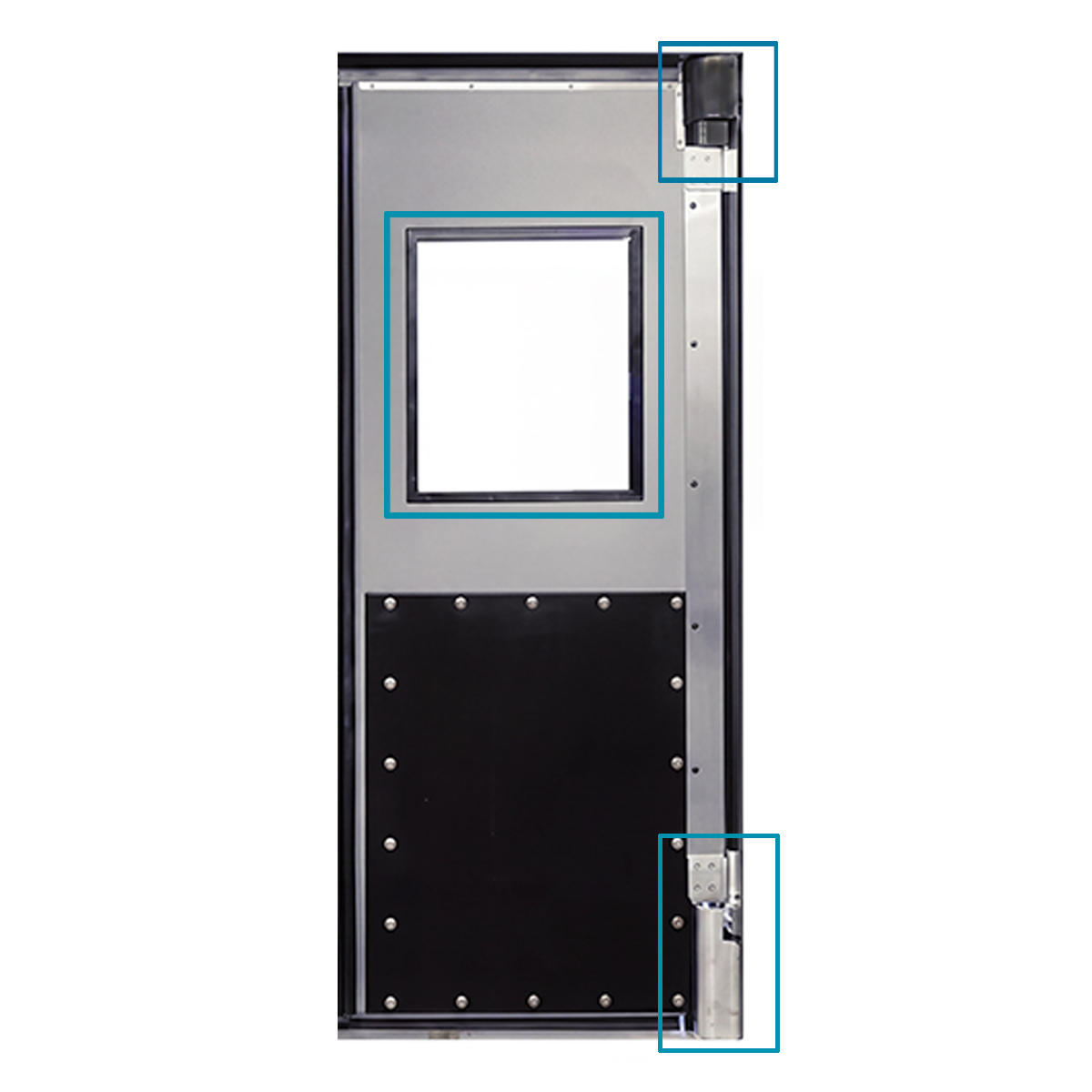

Chase CC 1875 Door
Door Window & Bumpers
Please call or email for quote:
- Toll Free: 800-690-1679
- Email: sales@doorparts.com
Upper Door Hinge Unit
Lower Door Hinge Unit
Lower Door Hinge Parts
CC1875 - Stainless Steel Hinge Adapter
Pillow Block
D0MKTRP036 - Standard Pillow Block Set
D0MKTRP037 - Stainless Steel Pillow Block Set
D0MASSAPKG - Spring Assist (Used with 11" Lower Hinge Guard ONLY)
11" Industrial Hinge Guard Kits
D0MKTRP009 - Alum
D0MKTRP010 - Poly
D0MKTRP011 - SS
D0MKTRP035 - Industrial Combo
The Industry’s Best Impact Traffic Door
The Durulite CC 1875 Industrial Traffic Door offers the same great impact and corrosion resistance benefits of our monolithically constructed Industrial Door but also allows for custom sizing flexibility. The CC 1875 (CC stands for cut and cap) allows our customers to fill odd sized openings with the industry’s best impact traffic door without the need for an extended top seal or mis-matched panels. The back edge and top of the door are cut to appropriately size the panel and then a heavy-duty, 11-gauge stainless steel spine and top cap are attached to the door. This door is both attractive and durable!
Specifications
- Door Panel:The CC 1875 has an impact resistant outer skin that is ¼” thick, rotationally molded, Crosslinked High Density Polyethylene (X-HDPE) that retains its properties to -40ºF. It can be custom sized to fit any opening up to 10' wide and 9'-11" high and has an overall panel thickness of 1-7/8".
- Insulated Core: Panel core is foamed in place with CFC-Free Urethane Foam providing excellent insulation properties.
- Internal Reinforcement: Leading edge reinforcement with heavy duty, 11-gauge stainless steel back spine and top cap.
