To Find Your Door Parts:

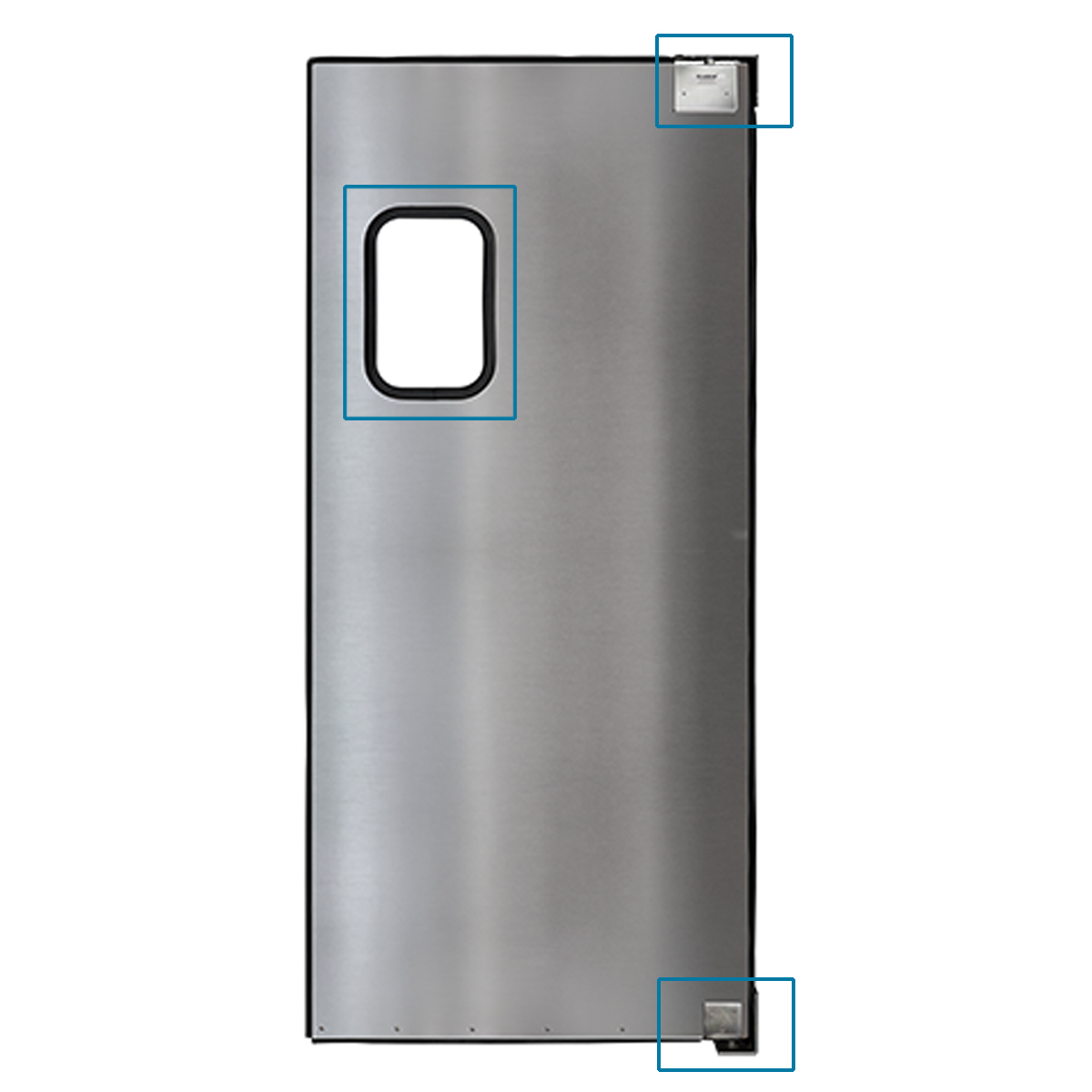

- Hover mouse anywhere within the blue squares on the door image.
- Click on the highlighted box to display the part numbers and links on the left-side box.
- Click on your part number in the left-side box to bring you to the page where you can order your part.
FCG 1 & 3 & SCG-8 & HCP & HCG
Door Window
Upper Door Hinge Unit
Durable & Attractive
These attractive and durable aluminum impact traffic doors are designed for use in supermarket and restaurant applications. The FCG-1 is constructed with a composite wood and foam insulated core with a .032” thick tempered aluminum alloy panel with a satin anodized finish on both sides. The windows are 9” x 14” clear acrylic single pane set in black rubber molding. These attractive, durable door panels come standard with 48” high stainless steel kick plates on both sides and operate on the Easy Swing Hinge System. The FCG-1 has a perimeter seal with an adjustable bottom gasket.
Specifications
- Core: Foam insulated core
- Door Classification: Impact traffic door
- Door Design: The door body is constructed of a .032" thick tempered aluminum alloy with a satin anodized finish on both sides, a 1.5" thick foam insulated core, a perimeter seal with an adjustable bottom gasket, 48" high stainless steel kick plate on both sides
- Face Sheet Colors: Aluminum
- Face Sheet Material: .032" thick tempered aluminum alloy with a satin anodized finish (both sides)
Construction
- Kick Plate: 48" high stainless steel on both sides
- Core: 1.5" thick foam insulated core
- Finish: Top panel - .032" thick tempered aluminum alloy with satin anodized finish (both sides)
- Gasketing: Perimeter seal with adjustable bottom gasket
- Hinge: Eliason Easy Swing® Hinge System
- Window: Standard 9" x 14" double glazed clear acrylic set in black rubber molding
- Optional bumpers, kickplates, and aluminum bumper strips available
