Chase Retailer Door
Door Models
Eliason Doors
- LPW3
- DSP3
- ENG-1
- EHH-3 & SCP-15
- P11 & G11 Plus
- SCP,1, 3, 4, 8 & 12
- SCG 1 & SCG 3
- FCG 1, 3 & SCG-8, HCP & HCG
- LWP & DSP Cafe
- P11Plus & SCP Cafe
Chase Doors
Chase Doors Top Seals
Top Seals work with Chase models that require a 2" top seal.

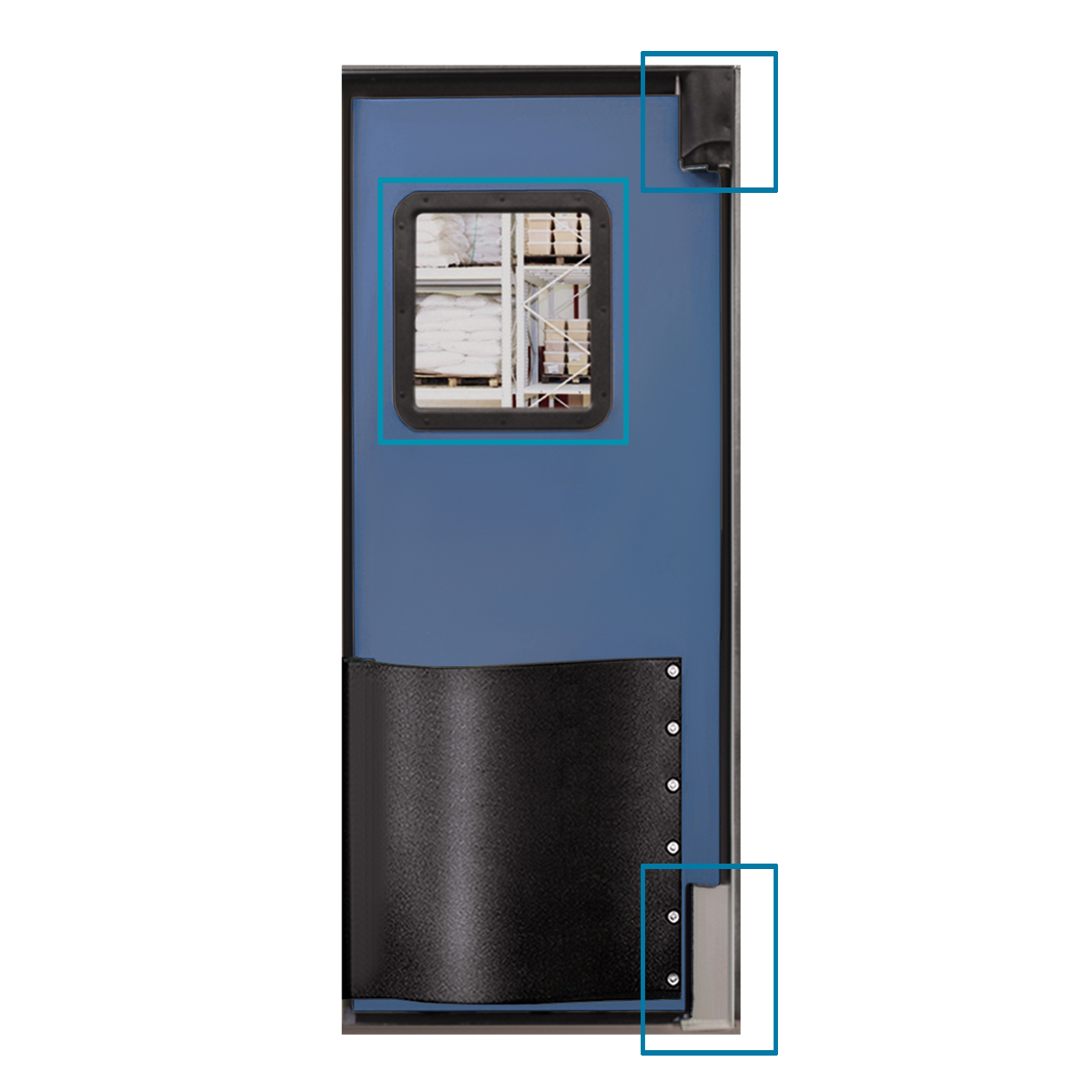

To Find Your Door Parts:
- Hover mouse anywhere within the blue squares on the door image.
- Click on the highlighted box to display the part numbers and links on the left-side box.
- Click on your part number in the left-side box to bring you to the page where you can order your part.
Chase Retailer Door
Door Windows & Bumpers
Please call or email for quote:
- Toll Free: 800-690-1679
- Email: sales@doorparts.com
Upper Door Hinge Unit
Lower Door Hinge Unit
Where Durable Meets Economical
Chase Retailer doors are constructed with rotationally molded polyethylene, making them extremely durable and capable of withstanding the wear and tear associated with sales-to-back room and walk-in cooler openings in high volume retail establishments.
Known for their long-term value, they are ideal for use in supermarkets, retail establishments, institutions, restaurants, and foodservice operations as they provide a visual separation, sound barrier, and thermal separation. The door is designed to comply with all USDA sanitation requirements and is NSF certified.
Specifications
- Door Panel: It is lightweight, opens easily and closes every time. Overall panel thickness is 1-1/2", skin thickness is 1/8" and the door can be sized up to a 8' x 10'. Rotationally molded polyethylene outer skin retains its properties to –40°F.
- Insulated Core: The door body is constructed of a special .063" thick tempered aluminum alloy with a standard clear anodized finish
- Internal Reinforcement: A 1" diameter hinge post is molded in the door and runs the full length of the panel. The hinge post sets into the jamb guard for structural stability and strength. The leading edge is reinforced with an aluminum extrusion adding additional structural support./li>
- Gasketing: Replaceable perimeter edge gasketing is used to reduce energy flow between environments. The door comes standard with a gasket along the leading, back and bottom edges. Partially gasket doors are available.
