Chase Doors
Chase Doors Top Seals
Top Seals work with Chase models that require a 2" top seal.
To Find Your Door Parts:
- Hover mouse anywhere within the blue squares on the door image.
- Click on the highlighted box to display the part numbers and links on the left-side box.
- Click on your part number in the left-side box to bring you to the page where you can order your part.
Model ENG-1 Door Parts

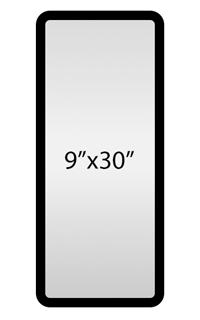

Door Window
Upper Door Hinge
Lower Hinge Unit
Lower Door Hinge Parts
Attractive and Upscale Quality
The Eliason® ENG-1 restaurant door is engineered and manufactured in the same tradition of high quality and dependability built into every Eliason® door. With its neatly Hidden Hardware and flush mounted window, this attractive door is perfect for upscale environments. This 1-13/16" thick door with its unique core construction provides excellent strength while being lightweight. This stylish door provides the same reliable service and uncompromising quality you’ve come to expect from Eliason®.
Specifications
- Core: 1-1/2" thick polymer core
- Door Classification: Traffic door
- Door Design: The door body is constructed of a 1-1/2" thick polymer core and clad full height on both sides with .032" thick decorative high-pressure laminate and .100" thick black, 8" high impact thermoplastic kick plates
- Face Sheet Colors: Available in a variety of colors
- Face Sheet Material: .032" thick decorative high-pressure laminate
Construction
- Core: 1.5" thick polymer core with PVC frame
- Door Thickness: 1-13/16"
- Hardware: Internal (gravity operated) hardware
- Hinge: Eliason Hidden Hardware
- Kick Plate - 8" high, black .100" thick high impact thermoplastic (both sides)
- Window: Standard flush 9" x 14" clear acrylic, double glazed
- Optional kickplates and aluminum bumper strips available
