Chase Industrial/Standard Door
Door Models
Eliason Doors
- LPW3
- DSP3
- ENG-1
- EHH-3 & SCP-15
- P11 & G11 Plus
- SCP,1, 3, 4, 8 & 12
- SCG 1 & SCG 3
- FCG 1, 3 & SCG-8, HCP & HCG
- LWP & DSP Cafe
- P11Plus & SCP Cafe
Chase Doors
Chase Doors Top Seals
Top Seals work with Chase models that require a 2" top seal.

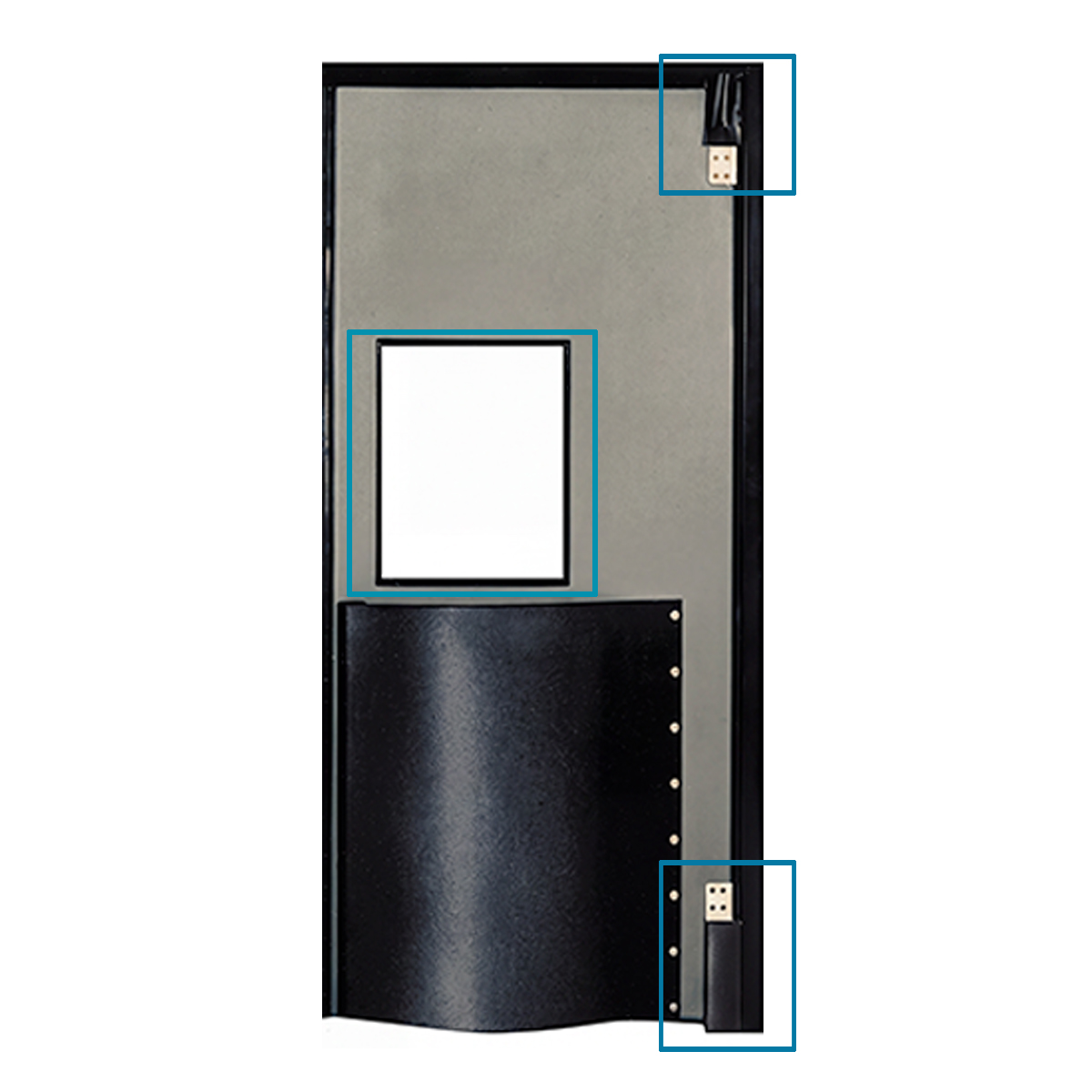

To Find Your Door Parts:
- Hover mouse anywhere within the blue squares on the door image.
- Click on the highlighted box to display the part numbers and links on the left-side box.
- Click on your part number in the left-side box to bring you to the page where you can order your part.
Chase Industrial Standard Door
Door Windows & Bumpers
Please call or email for quote:
- Toll Free: 800-690-1679
- Email: sales@doorparts.com
Upper Door Hinge Unit
Lower Door Hinge Unit
Lower Door Hinge Parts
Pillow Block
D0MKTRP036 - Standard Pillow Block Set
D0MKTRP037 - Stainless Steel Pillow Block Set
D0MASSAPKG - Spring Assist (Used with 11" Lower Hinge Guard ONLY)
8.5" Standard Lower Hinge Guard Kits
D0MKTRP012 - Alum
D0MKTRP013 - Poly
D0MKTRP014 - SS
11" Standard Lower Hinge Guard Kits
D0MKTRP009 - Alum
D0MKTRP010 - Poly
D0MKTRP011 - SS
D0MKTRP035 - Industrial Combo
Where Durable Meets Economical
The Chase Durulite industrial door is the toughest traffic door in the industry. It is known for its ruggedness, ease of maintenance, and long service life. This versatile door is capable of filling the needs of a wide variety of applications. From the daily rigors of forklift traffic to refrigerated applications, to USDA and washdown applications.
The strength of the Durulite industrial is due to its rotationally molded polyethylene construction. Standard tests for impact resistance indicate that rotationally molded polyethylene is five times more puncture-resistant and three times more flexible than ABS material. The corrosion-resistant panel is ideal for washdown applications as it has no gaps or joint seams.
Specifications
- Door Panel:The industrial door is lightweight, weighing only 3.5 pounds per square foot, easy to open, operates smoothly and allows for safe passage of personnel and damage free equipment. The overall panel thickness is 1-7/8", the skin thickness is 1/4" thick and the door can be sized up to a 10' x 10'. Rotationally molded polyethylene outer skin retains it properties to –40°F.
- Insulated Core: The foamed-in-place Non-CFC urethane core (permanently bonded to the outer surface) does not break down when impacted, provides noise control and excellent insulation with an R factor of 10.83.
- Internal Reinforcement: The leading and back edge of door are internally reinforced with tubular steel to strengthen the door panel.
- Gasketing: USDA accepted durable gasketing is factory applied without the use of metal strips or fasteners, making it easy to replace in the field.
