Door Models: SCP, 1, 3, 4, 8, 12
Door Models
Eliason Doors
- LPW3
- DSP3
- ENG-1
- EHH-3 & SCP-15
- P11 & G11 Plus
- SCP,1, 3, 4, 8 & 12
- SCG 1 & SCG 3
- FCG 1, 3 & SCG-8, HCP & HCG
- LWP & DSP Cafe
- P11Plus & SCP Cafe
Chase Doors
Chase Doors Top Seals
Top Seals work with Chase models that require a 2" top seal.
To Find Your Door Parts:
- Hover mouse anywhere within the blue squares on the door image.
- Click on the highlighted box to display the part numbers and links on the left-side box.
- Click on your part number in the left-side box to bring you to the page where you can order your part.

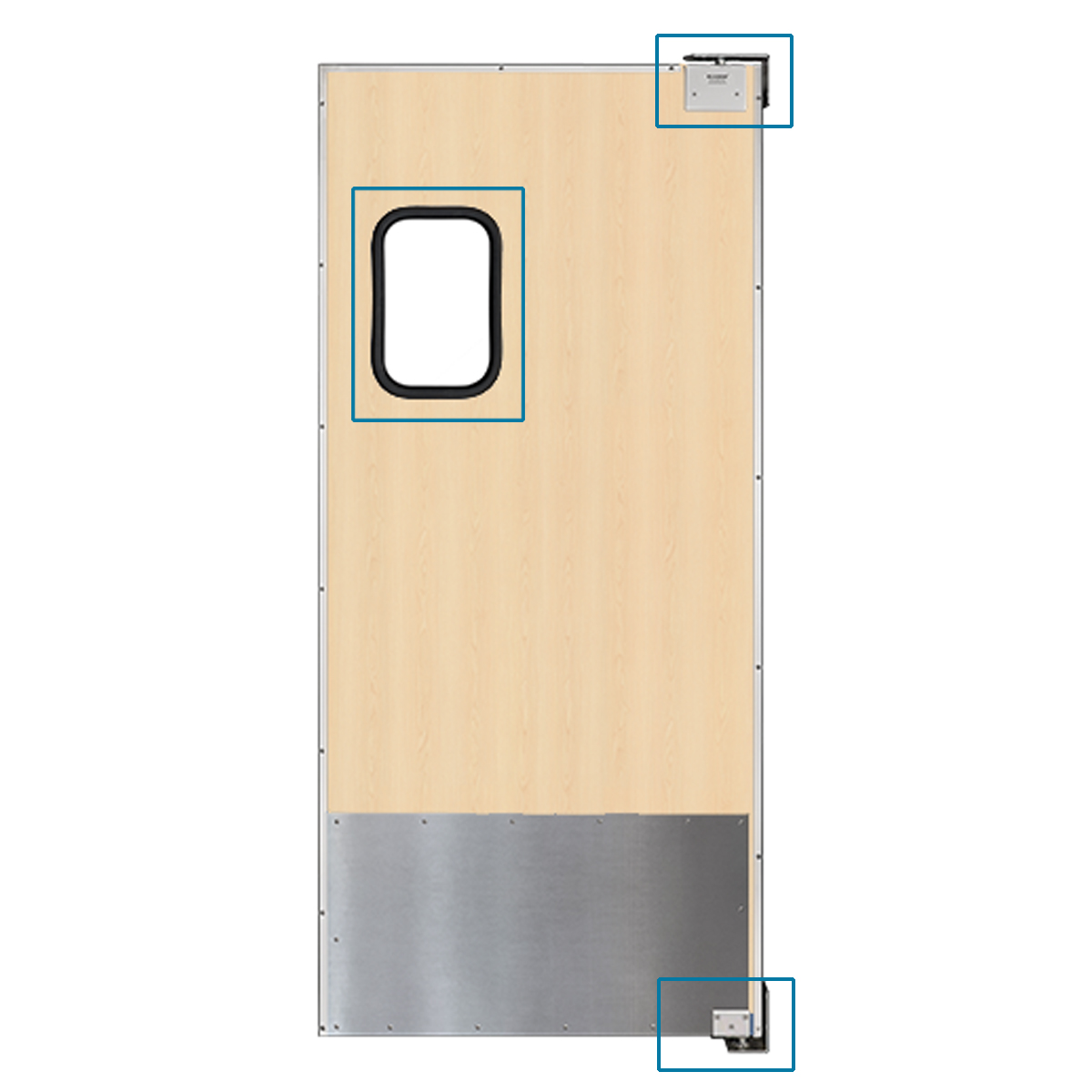

Models: SPC, 1, 3, 4, 8, 12 Door Parts

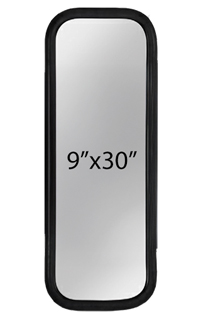

Door Window
Upper Door Hinge Unit
Strikingly Classic Appeal
SCP-1, 3, 4, 8 & 12 traffic doors are installed in kitchens, restaurants, banquet halls, cafeterias, hospitals and hotels around the world. These very attractive traffic doors offer the classic look and durability associated with stainless steel. They are constructed of a 3/4” sustainable, moisture resistant composite wood core and clad on both sides with satin anodized aluminum and 48” high stainless steel kick plates. Standard scratch-resistant 9” x 14” acrylic vision panels are set in black rubber molding. These doors operate on the Easy Swing Hinge® System pioneered by Eliason more than fifty years ago, and still the smoothest operating and most reliable hinge system on the market today. Custom windows, kick plates, easy spring bumpers and other options are available.
Specifications
- Core: Moisture resistant composite wood core
- Door Classification: Traffic door
- Door Design: The door body is constructed of a 3/4" sustainable, moisture resistant composite wood core and clad full height on both sides with aluminum alloy and 48" high kick plates
- Face Sheet Colors: Aluminum
- Face Sheet Material: Tempered aluminum alloy with satin anodized finish (both sides - top panel), 48" high stainless steel kick plates (both sides)
Construction
- Kick Plate: 48" high stainless steel (both sides)
- Core: .75" thick sustainable, moisture resistant, composite wood core
- Door Thickness: .75"
- Finish: Top panel - .032" thick tempered aluminum alloy with satin anodized finish (both sides)
- Hinge: Eliason Easy Swing® Hinge System
- Window: Standard 9" x 14" clear acrylic set in black rubber molding
- Optional bumpers, kickplates, and aluminum bumper strips available
