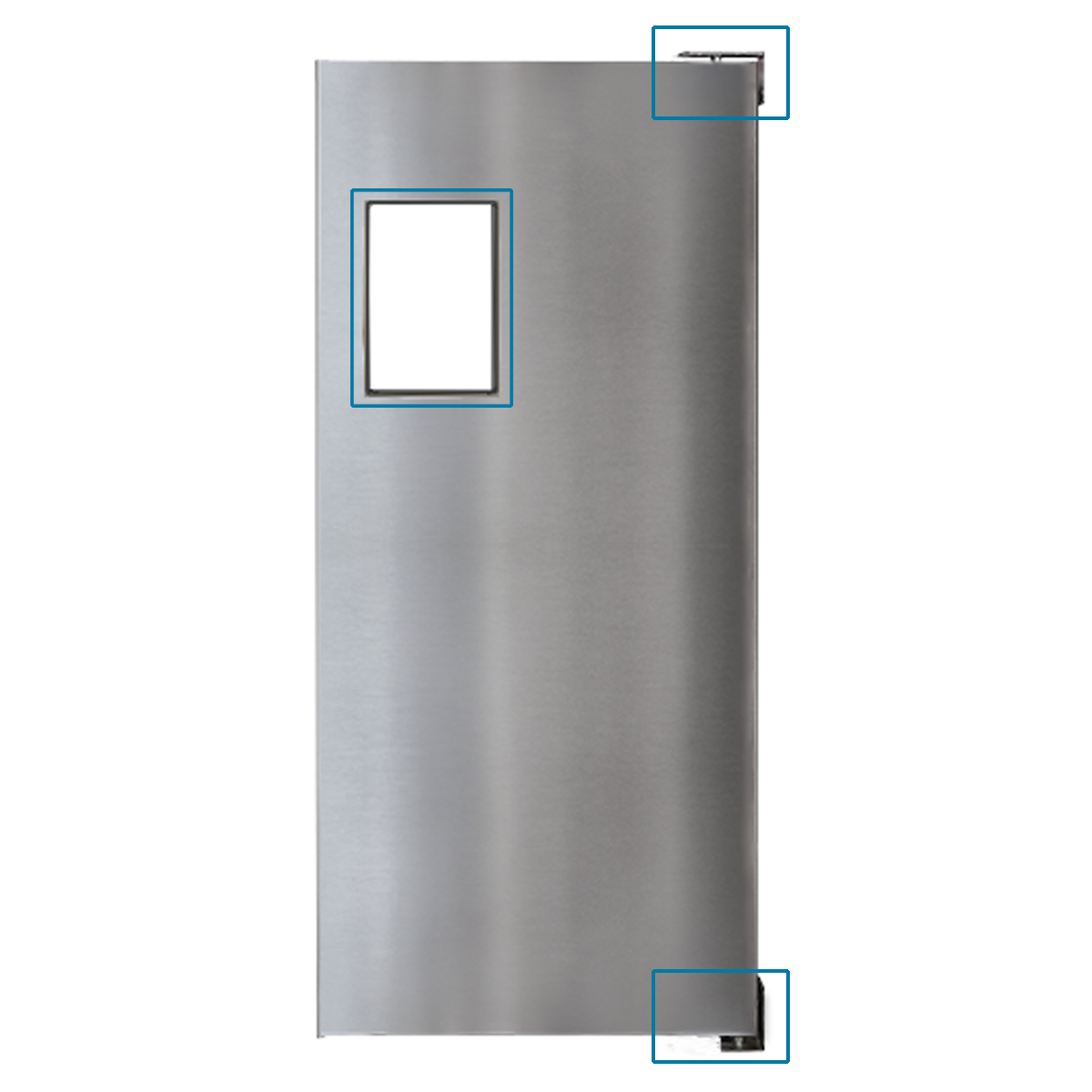

Models EHH-3 & SCP-15
Door Window
Upper Door Hinge
Lower Hinge Unit
Lower Door Hinge Parts
EHH-3 Stainless Steel Traffic Door
Unique, Sleek & Tough
The EHH-3 is constructed of a 3/4” sustainable, moisture resistant composite wood core and clad full height on both sides with stainless steel. Standard scratch-resistant 9" x 14" acrylic vision panels are installed flush to the surface of the door panel to provide a very sleek appearance. These doors operate on our unique patented "Hidden Hinge" system. The hinge is mounted on the back side of the door panel, hidden from customer view and operates on the same design principle as our Easy Swing Hinge. Custom size windows, kick plates, and other options are available.
Specifications
-
Core: Moisture Resistant Composite Wood Core
- Door Classification: Impact traffic door
- Door Design: 3/4" thick door body is constructed of a wood core and clad full height on both sides with 20 gauge stainless steel.
- Face Sheet Material: 20 gauge full height stainless steel
- Optional: Kick plate or aluminum bumper strip
Construction
- Finish: 20 gauge full height stainless steel
- Hinge: Eliason Hidden Hinge System
- Window: Standard scratch resistant 9" x 14" acrylic vision panels are installed flush to the surface
SCP-15 High Pressure Laminate Traffic Door
When Cost, Taste & Variety Matter
When it comes to generating restaurant profits, we know cost, taste and variety matter. That’s why Eliason® is proud to offer the value priced SCP-15 Restaurant Door. This sleek, thin-profile door features quality, contains a 3/4” sustainable, moisture resistant composite wood core, and either the Eliason® patented Hidden Hinge or Easy Swing® hinge hardware, proven to be the smoothest-operating and most reliable hinge available. Choose from a wide selection of colors and options. So get ready to upgrade your restaurant’s décor and appeal with the SCP-15 from Eliason®.
Specifications
- Core: Moisture resistant composite wood core
- Door Classification: High pressure laminate traffic door
- Door Design: The door body is constructed of a .75" thick wood core with full height high pressure laminate (HPL) on both sides
- Face Sheet Material: Decorate high pressure laminate
Construction
- Core: .75" thick sustainable, moisture resistant, composite wood core
- Door Thickness: .75"
- Edge Molding: Black plastic edge molding
- Finish: .032" thick decorative high pressure laminate (both sides)
- Hinge: Eliason patented Hidden Hinge OR Easy Swing Hinge®
- Kick Plate: 8" high black ABS (both sides)
- Window: Standard 9" x 14" clear acrylic flush windows
- Optional kick plates and aluminum bumper strips available
