Door Model DSP3

Door Models

Eliason Doors

Chase Doors

Chase Doors Top Seals

Top Seals work with Chase models that require a 2" top seal.

To Find Your Door Parts:

Hover mouse anywhere within the blue squares on the door image.
Click on the highlighted box to display the part numbers and links on the left-side box.
Click on your part number in the left-side box to bring you to the page where you can order your part.

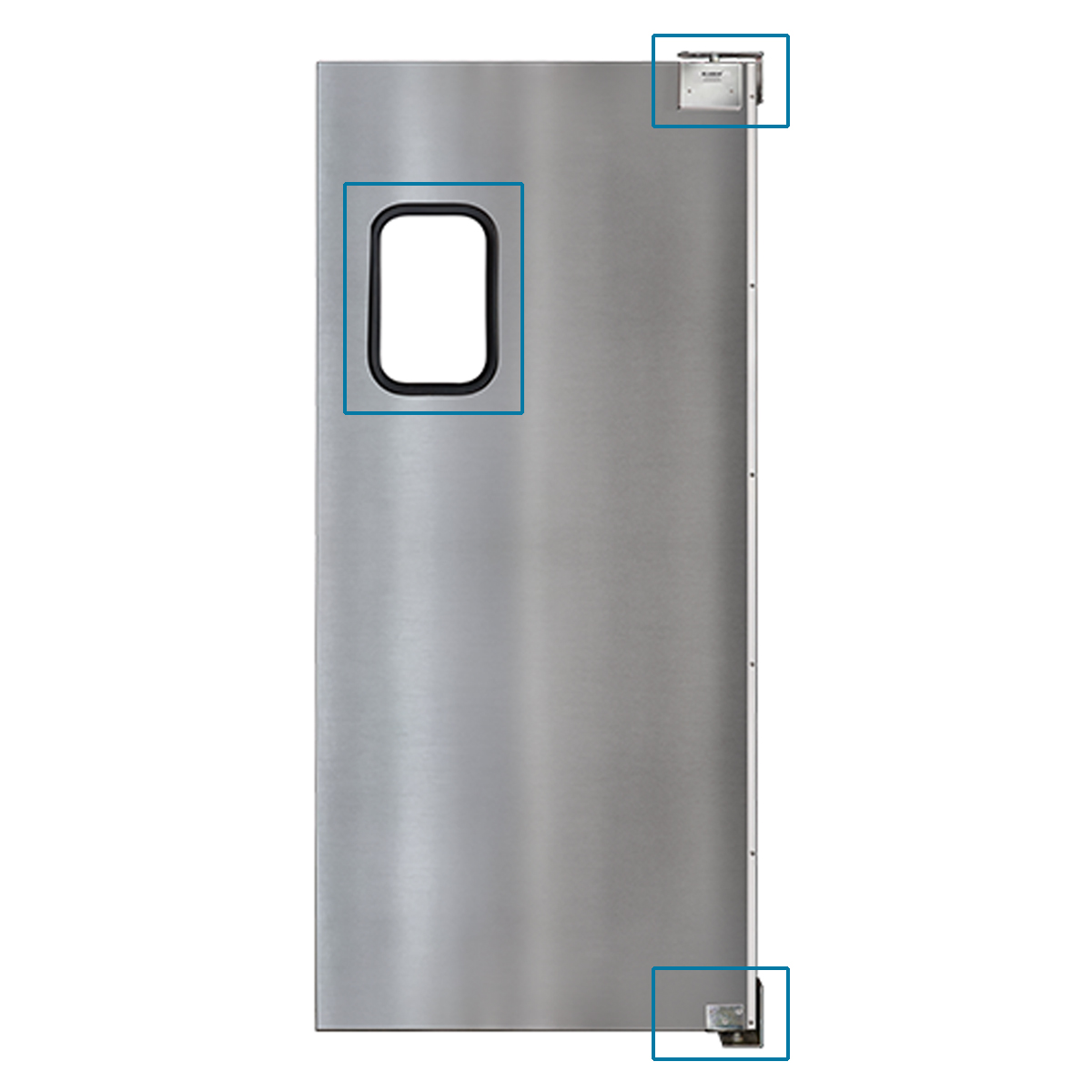

Model DSP3 Door Parts

Door Window

Door Window Parts

Standard 9"x14"

ADA Window 9"x30"

Upper Door Hinge

Upper Door Hinge Parts

K0142 - SS Upper Hinge

K0242 - SS Top Bracket

K0136 - Hinge Roller

K0139 - SS Hinge Cover

Lower Hinge Unit

Lower Door Hinge Parts

K0144 - SS Hinge

K0193 - SS 3"x9"Jam Guard

Where Durable Meets Economical

The Eliason® LWP-3 traffic door is a lightweight, economical solution where visual separation is desired between kitchen and dining areas, customer service and back room, or sales floor and stockroom. The door body is constructed of a special alloy .063" thick tempered aluminum that creates a durable door with just the right amount of flexibility. The LWP-3 comes standard with a clear anodized finish. We also manufacture this door with a 16 gauge stainless steel door body (Specify Model DSP-3). Standard vision panels are 9" x 14" set in black rubber molding. Various window sizes and shapes, impact plates, push plates and other options are also available. LWP-3 and DSP-3 models operate on the Eliason Easy Swing Hinge®.

Specifications

Door Classification: Aluminum traffic door
Door Design: The door body is constructed of a special .063" thick tempered aluminum alloy with a standard clear anodized finish
Optional kickplates and aluminum bumper strips available

Construction

Door Thickness: .063"
Finish: Clear anodized tempered aluminum alloy (both sides)
Hinge: Eliason Easy Swing® Hinge System
Window: Standard 9" x 14" clear acrylic set in black rubber molding
