Door Model LPW3
Door Models
Eliason Doors
- LPW3
- DSP3
- ENG-1
- EHH-3 & SCP-15
- P11 & G11 Plus
- SCP,1, 3, 4, 8 & 12
- SCG 1 & SCG 3
- FCG 1, 3 & SCG-8, HCP & HCG
- LWP & DSP Cafe
- P11Plus & SCP Cafe
Chase Doors
Chase Doors Top Seals
Top Seals work with Chase models that require a 2" top seal.
To Find Your Door Parts:
- Hover mouse anywhere within the blue squares on the door image.
- Click on the highlighted box to display the part numbers and links on the left-side box.
- Click on your part number in the left-side box to bring you to the page where you can order your part.

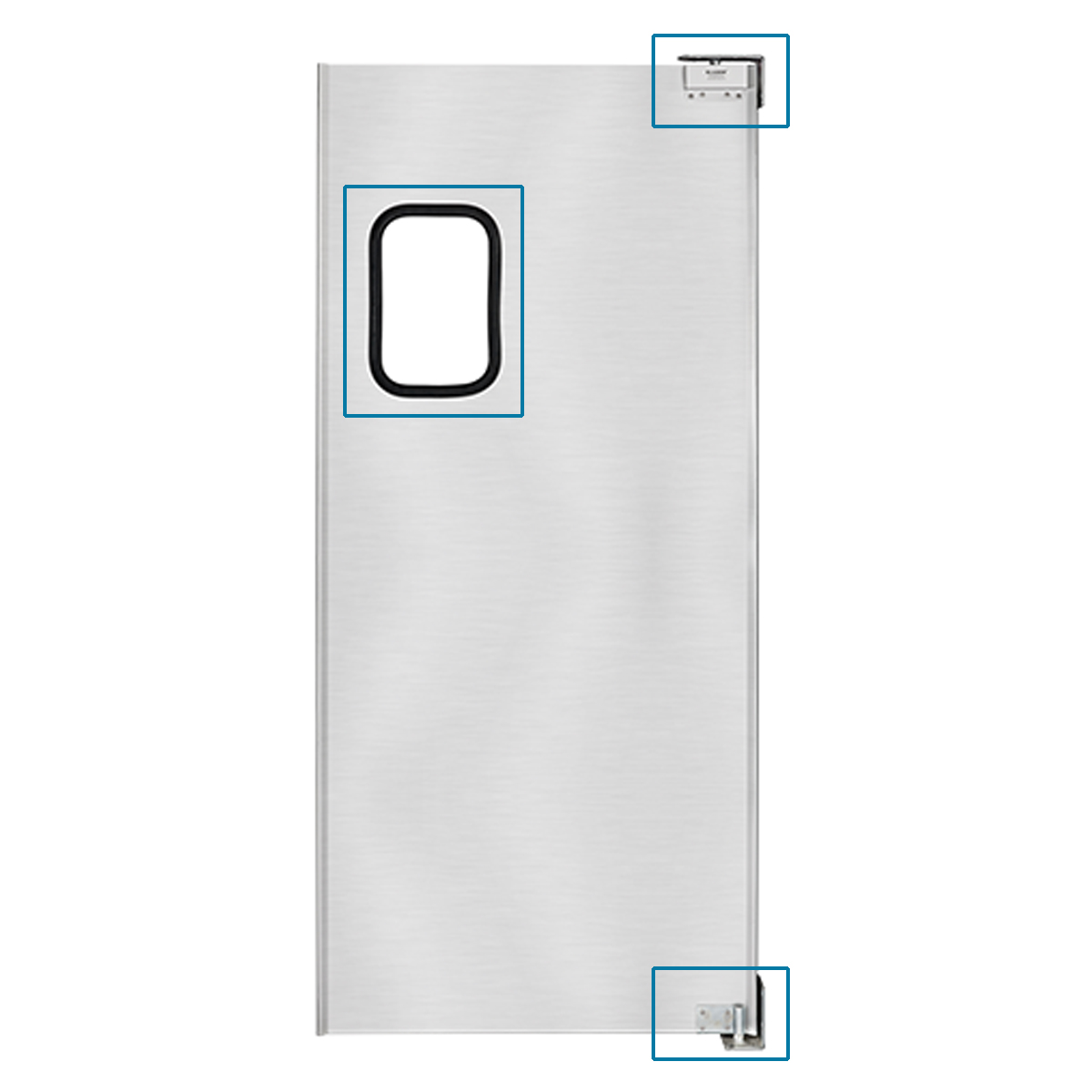

Model LPW3 Door Parts
Door Window

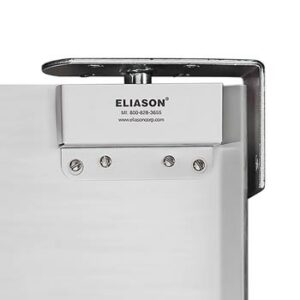

Upper Door Hinge Unit
Upper Door Hinge Parts

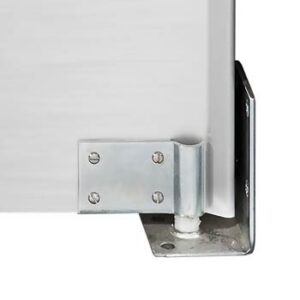

Lower Door Hinge Unit
Lower Door Hinge Parts
Where Durable Meets Economical
The Eliason® LWP-3 traffic door is a lightweight, economical solution where visual separation is desired between kitchen and dining areas, customer service and back room, or sales floor and stockroom. The door body is constructed of a special alloy .063" thick tempered aluminum that creates a durable door with just the right amount of flexibility. The LWP-3 comes standard with a clear anodized finish. We also manufacture this door with a 16 gauge stainless steel door body (Specify Model DSP-3). Standard vision panels are 9" x 14" set in black rubber molding. Various window sizes and shapes, impact plates, push plates and other options are also available. LWP-3 and DSP-3 models operate on the Eliason Easy Swing Hinge®.
Specifications
- Door Classification: Aluminum traffic door
- Door Design: The door body is constructed of a special .063" thick tempered aluminum alloy with a standard clear anodized finish
- Optional kickplates and aluminum bumper strips available
Construction
- Door Thickness: .063"
- Finish: Clear anodized tempered aluminum alloy (both sides)
- Hinge: Eliason Easy Swing® Hinge System
- Window: Standard 9" x 14" clear acrylic set in black rubber molding
